Trendnet TI-S12048
Trendnet - 120 W Single Output Industrial DIN-Rail Power Supply, Industrial power supply with integrated DIN-rail mount, Provides up to 120 Watts of power (48 V, 2.5 A), Built-in active PFC (PF > 0.93), Short circuit/overload/over voltage/over temperature protection, High efficiency (91%) design, UL 508 approved, 100 % full load burn-in test, Extreme -25 to 70 °C (-13 to 158 °F) operating temperature range.
Thumbnail Filmstrip of Trendnet TI-S12048 Images
SKU: TIS12048
Trendnet TI-S12048
Please sign in to purchase.
Specifications
TRENDnet 120 W Single Output Industrial DIN-Rail Power Supply

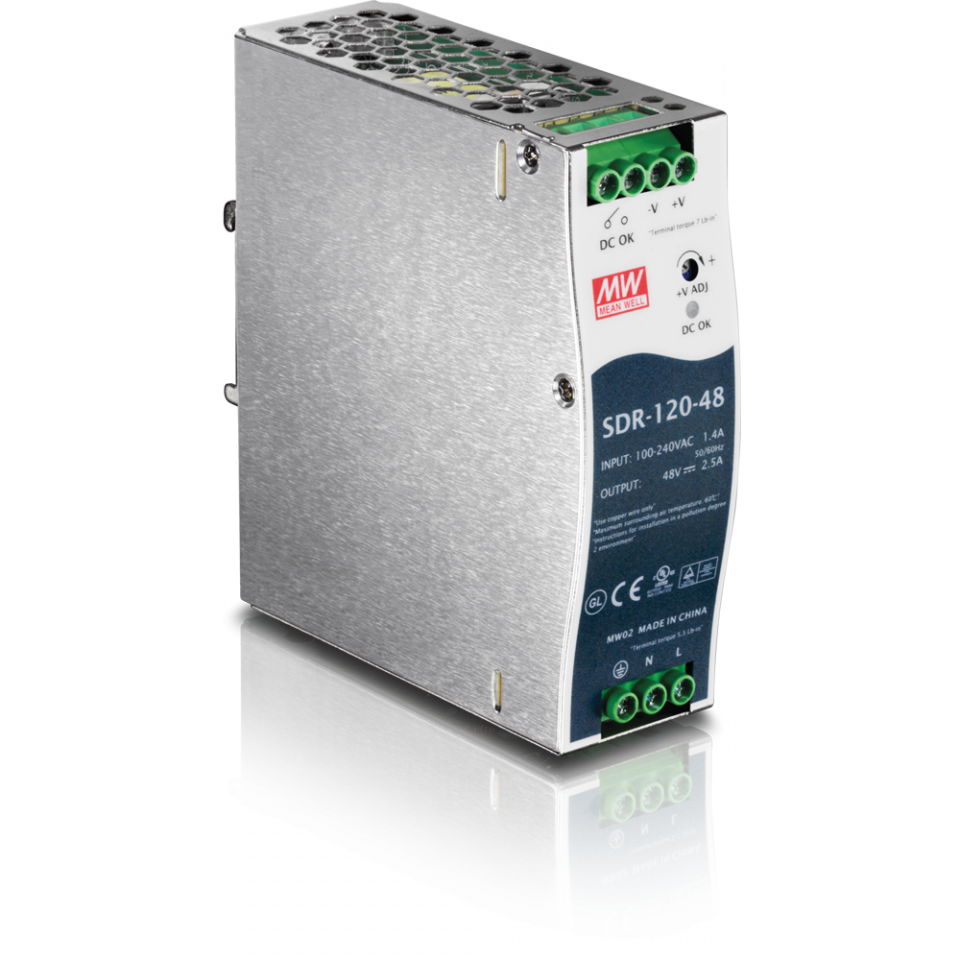

TRENDnet’s high efficiency 120 W Single Output Industrial DIN-Rail Power Supply, model TI-S12048 (Mean Well SDR-120-48), supplies up to 120 Watts (48 V, 2.5 A) of power to industrial PoE equipment such as switches, network cameras, and WiFi access points. This power supply comes with active PFC, an integrated DIN-rail mount, and overload current protection.
Key Features:
- Industrial power supply with integrated DIN-rail mount
- Provides up to 120 Watts of power (48 V, 2.5 A)
- Built-in active PFC (PF > 0.93)
- Short circuit/overload/over voltage/over temperature protection
- High efficiency (91%) design
- UL 508 approved
- 100 % full load burn-in test
- Extreme -25 to 70 °C (-13 to 158 °F) operating temperature range
120 Watt Power
Provides up to 120 Watts (48 V, 2.5 A) of power for PoE devices such as switches, network cameras, and access points
Extreme Temperatures
Rated for an operating temperature range of -25 to 70 °C (-13 to 158 °F)
Active PFC
The built-in active Power Factor Controller (PFC, PF > 0.93) helps eliminate unusable reactive power
Safety Certifications
Certified for UL 508 and TUV EN60950-1
Overload Protection
Overload/short circuit/over voltage/over temperature protection
Electro Magnetic Emission/Immunity
Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2/3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A, SEMI F47, and GL approved
Passive Cooling
Cooling by free air convection
Vibration Resistant
Rated for vibration (IEC 60068-2-6)
DIN-Rail Mount
Metal enclosure with integrated DIN-rail mount
LED Indicator
LED indicator confirms power to the unit
Reviews
Leave a Review
Please sign in to leave a review.
Product Reviews
No Reviews Yet!Related Products
login to view prices
SImply45 - ProSeries Unshielded Pass Through RJ45 Modular Plugs with Cap45 for 23AWG Solid (Cat6/6a UTP), Hi/Lo Stagger, Wire Conductors 1.05mm-1.2mm/0.041"-0,047", Max Cable OD 7.4mm/0.0291", (more...)
Simply45 - Simply45 Pass Through RJ45 Crimp Tool for UTP & Internal Ground Shielded Pass Through RJ45 Mod Plugs, Built-In Stripper/Cutter - 1Ea/Blister.
Genesis - Cat 6 Cable, Blue, 1000ft. Pull Box 4-Pair, U/UTP, Riser CMR/FT4, 100% Copper.
Genesis - Cat 6 Cable, White, 1000ft. Pull Box 4-Pair, U/UTP, Riser CMR/FT4, 100% Copper.
People Also Bought
TRENDnet - 6-port hardened Industrial Gigabit PoE+ Layer 2 Managed DIN-Rail Switch, 4 x Gigabit PoE+ (802.3at) ports, 1 x Gigabit port, and 1 x Gigabit SFP slot, Hardened IP30 rated metal enclosur (more...)
Dahua - 4K 16CH 1U Penta-brid HDCVI DVR, 16 channels up to 4K@7fps/4MP@15fps encoding H.265+/H.265/H.264+/H.264 video compression. Supports 16 ch SMD or 2ch perimeter protection or 2ch Facial reco (more...)

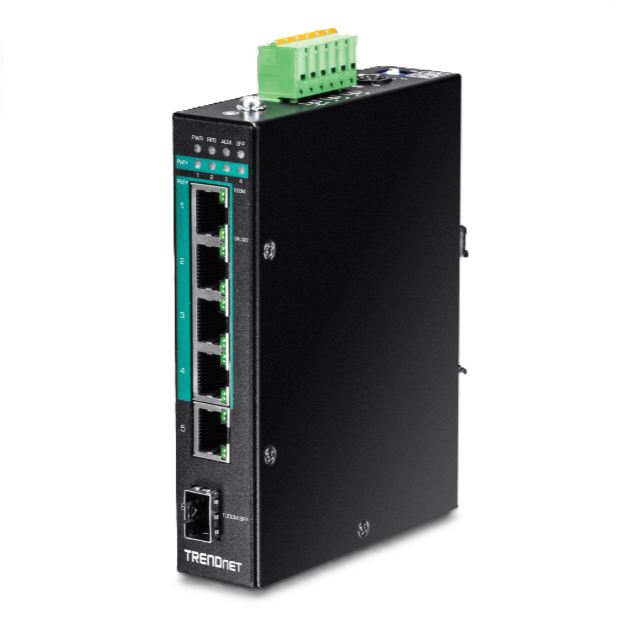

TRENDnet - 5-Port Industrial Fast Ethernet PoE+ DIN-Rail Switch, 4 x Fast Ethernet PoE+ ports, 1 x Fast Ethernet port, Hardened IP30 rated metal switch, Includes DIN-Rail mount and wall mount brac (more...)
