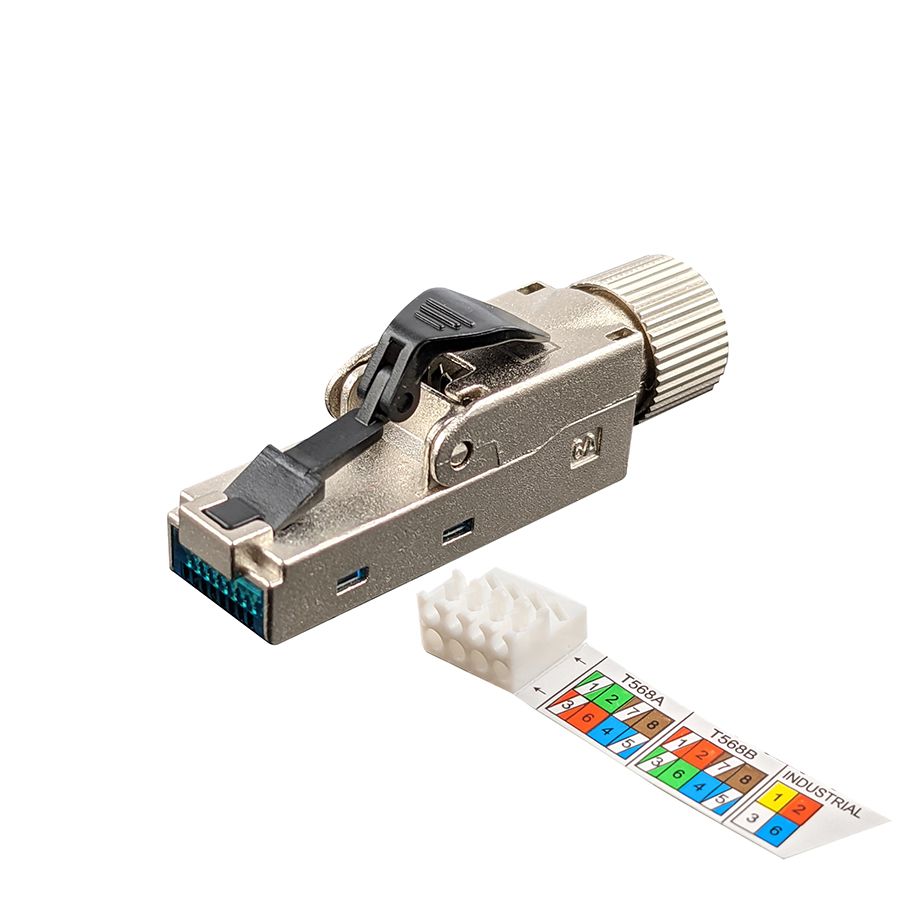

Simply45 S45-1710S
Simply45 - 10G Rated RJ45 Toolless Shielded Field Plug, Ultra Slim Design for Cat6/6a/7a Shielded LAN cables, - 1ea/Bag.
Thumbnail Filmstrip of Simply45 S45-1710S Images
SKU: S451710S
Simply45 S45-1710S
Please sign in to purchase.
Specifications
Simply45 10G RATED RJ45 FIELD PLUG
Simply45 introduces our S45-1710S to our 10G RJ45 Field Plug Family. Ideal for all 10G Network Applications and IP-Enabled Devices. Our S45-1710S RJ45 Field Plug is a toolless 1-piece design field plug providing outstanding performance, reliability, and ease of use for today’s 10GBaseT networking applications. The S45-1710S supports Cat7a/7/6a/6 shielded cables with 22-26 AWG conductor diameters.S45-1710S Improvements Include: • Ultra Slim Design - Supports Side-by-Side Installation in High Density Patch Panels and Device Sockets. • Improved Wiring Layout - Easier and Faster Terminations • Built-In Strain Relief – Easier to Use and Supports Shallower Depth Installations • PoE/PoH Support for IEEE 802.3bt.
Key Features:
- Fully Shielded One Piece Construction
- Toolless – No special tools needed.
- Improved Load Bar for faster & easier wire pattern termination
- Wiring Label: TIA 568 A/B Patterns
- Standards Compliance: ANSI/TIA 568.2-D; ISO/IEC 11801 Class Fa, Ea, E; TIA 1096-A
- All Shielded Category Cable Constructions Supported for Cat7a, Cat7, Cat6a, and Cat6
- Ideal for Large Diameter Cables and Conductors
- Supports 22-26 AWG Solid Wire/23-27 AWG Stranded Wire
- Overall Cable Diameters: 6.0mm to 9.0mm
- Reusable Termination Capability: Up to 5 Times PoE IEEE 802.3bt
- Protection Category: IP 20
