CDVI POE+I

Specifications

CDVI POE+I Single-Port Ultra PoE+ Injector

The POE+I is a single port Power over Ethernet Injector with a 60-watt maximum power output over Ethernet cable. It is specifically designed to supply network equipment with more demanding power requirements.

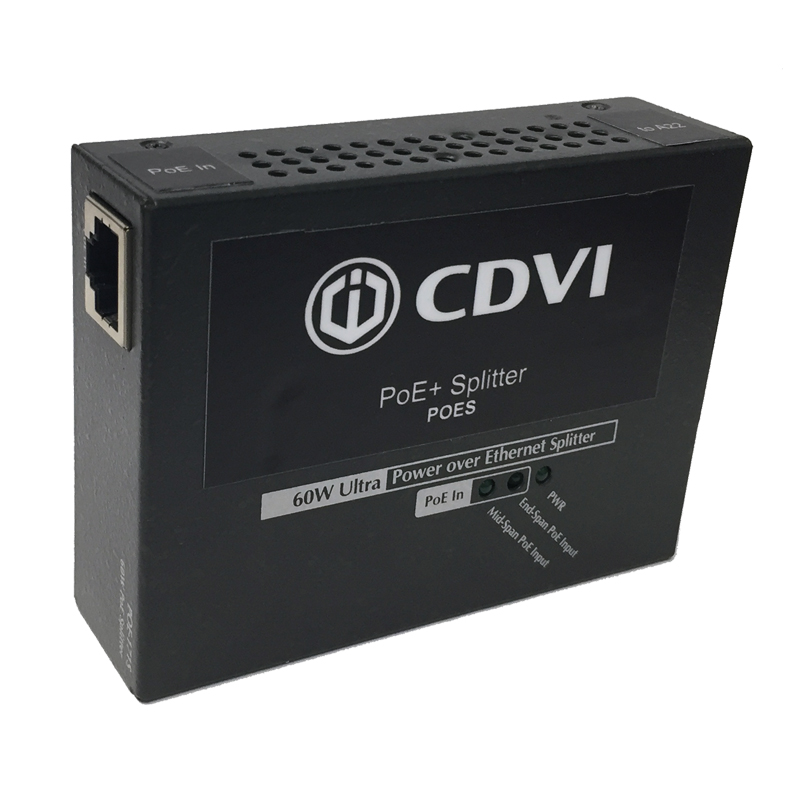

If the POE+I is used with the POE+S (Splitter), the power output will be 60-watts (IEEE 802.3at standard).

Interface:

• 2-Port RJ-45 interface (1-Port Data + Power output; 1-Port Data input)
• 1 DC 52~56V input power socket

Power over Ethernet:

• Ultra Power over Ethernet End-Span/Mid-Span PSE
• IEEE 802.3at/af PoE standard compliant
• Compatible with All IEEE 802.3at/af powered devices
• Supports 56VDC, 60-watt PoE power output at maximum
• Auto-detection of PoE IEEE 802.3at/af equipment and device for possible damage by incorrect installation
• Automatic detection and protection of non–standard Ethernet terminals
• Remote power feeding up to 100 meters

Hardware:

• Compact size metal case
• LED indicators for power LED and PoE In-use LED
• Dimensions (W x D x H): 3.75 x 2.75 x 1 in. (95 x 70 x 26 mm)
• Weight:237g (.36 oz)
• Operating Temperature: 32 ~ 122 degrees F (0 ~ 50 degrees C)
